PTH 1200 G

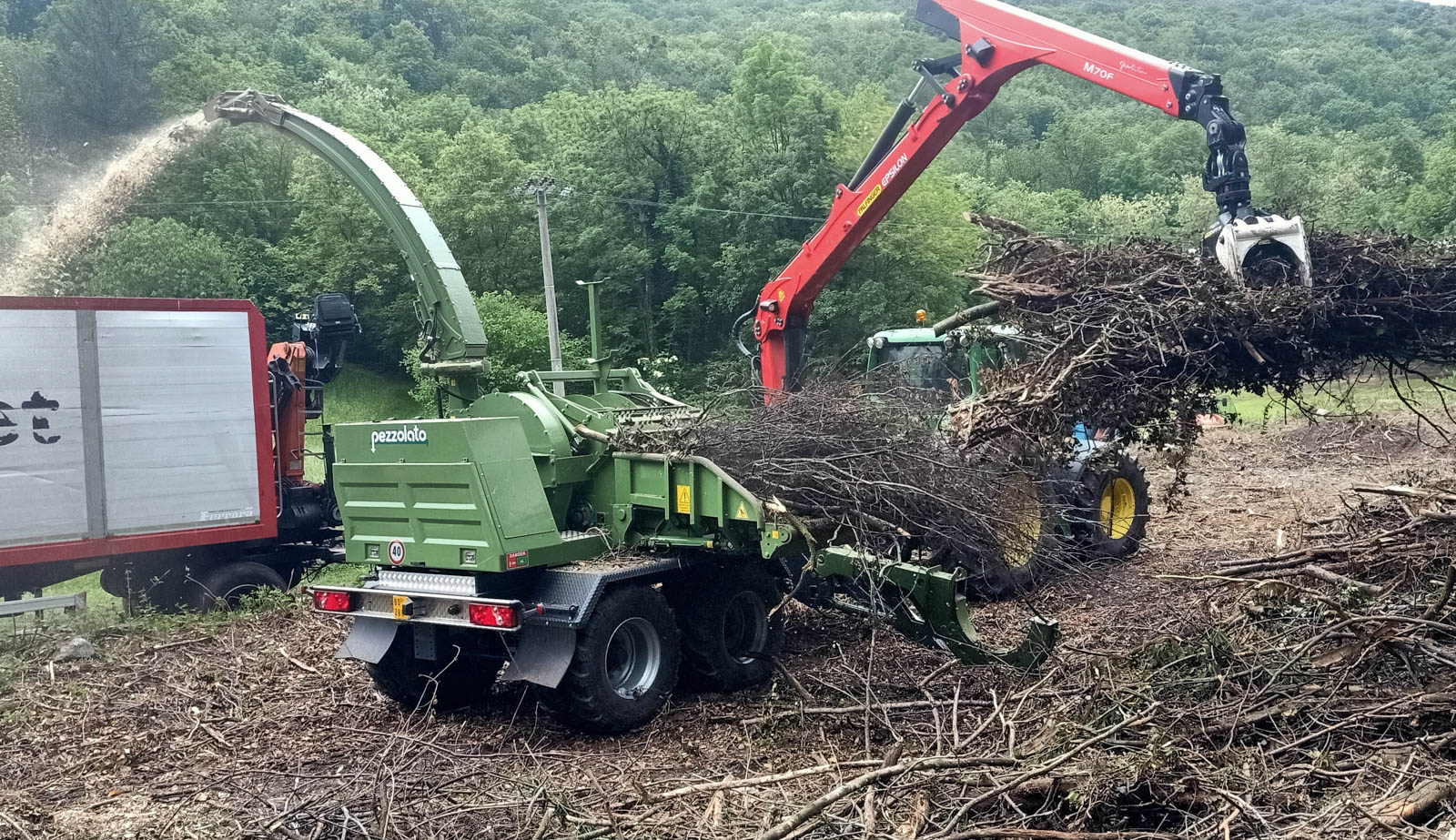

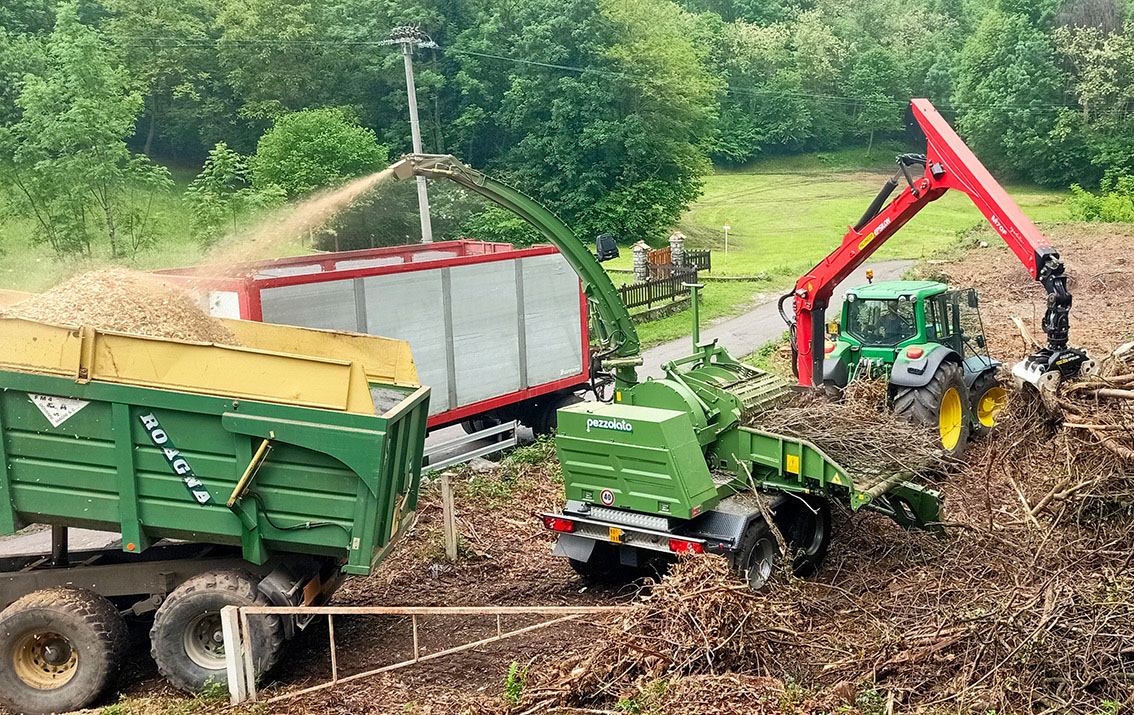

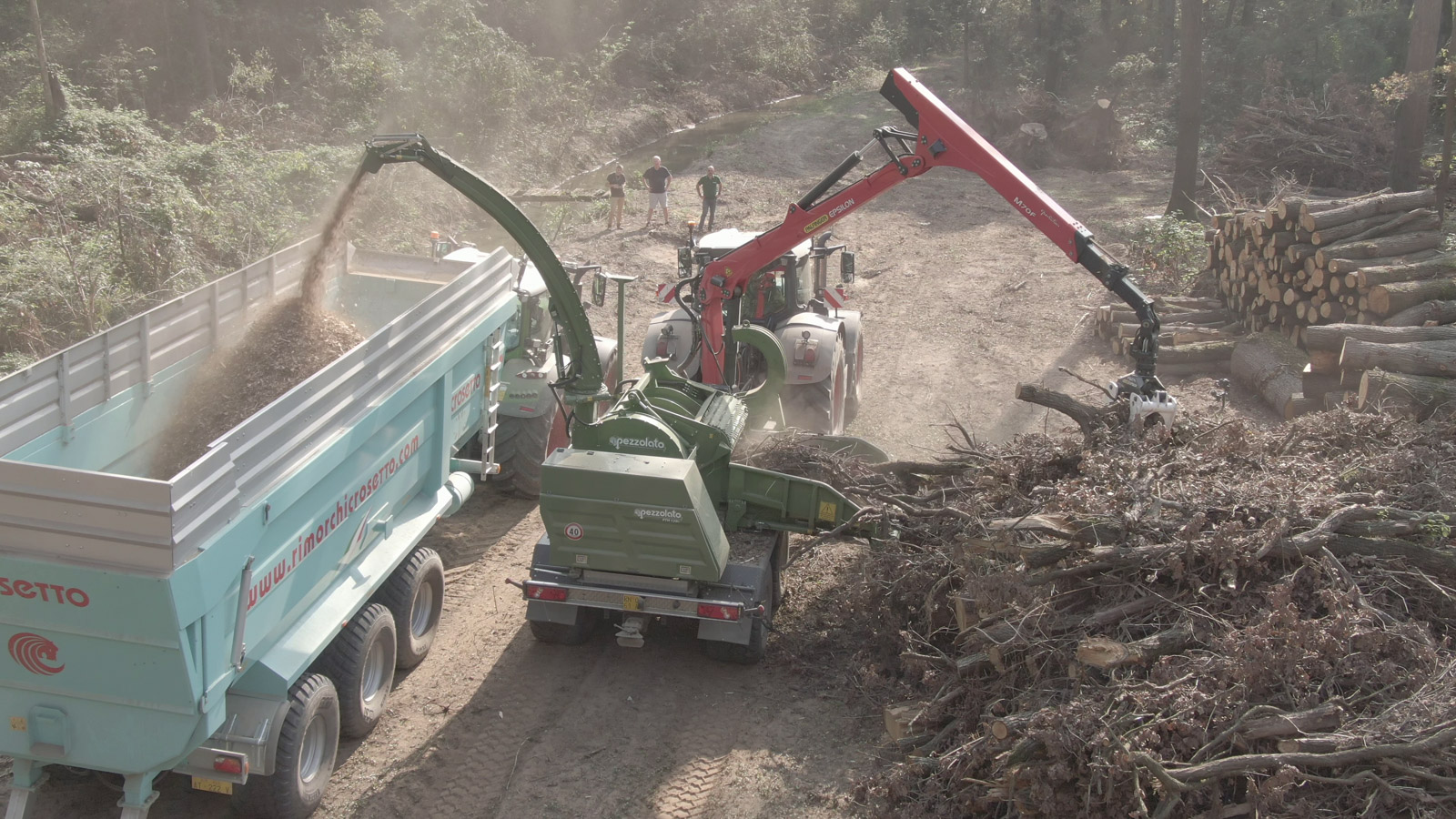

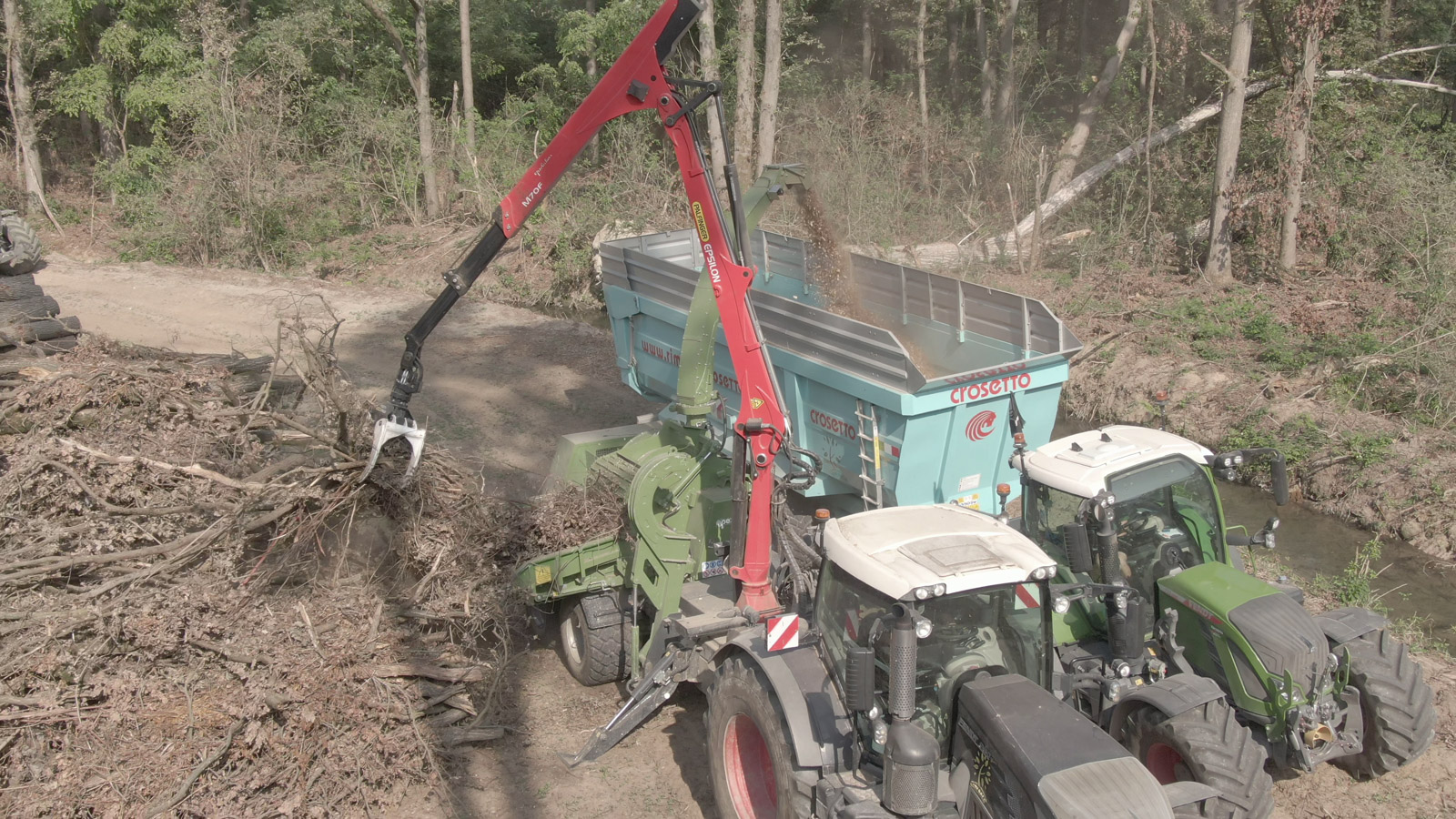

PTH 1200 G medium-high power drum chipper for those operators looking for performance, reliability and quality.

The chippers PTH 1200 G are robust and powerful machines, capable of processing large quantities of biomass (up to 120 cubic meters per hour) in a short time, producing high quality chips, which can be then destined for large power stations, gasifiers or small boilers (where a homogenous chips size is necessary).
The diameter of the chipper drum (660 mm) and the width of the feeding opening (1200 mm) allow the machine to process logs with a diameter up to 500 mm.

Read more


These chippers are designed with a conical-shaped feeding opening, a feature that, combined with the upper roller that opens completely, allows even very bulky logs and branches to be processed effectively, thus increasing productivity.
The closed feeding chain brings the material to be chipped to the counter-knife, a design feature that eliminates the problem of ‘wasted material’ accumulating under the machine after each movement, thus avoiding the need to slow down the equipment for site cleaning.
The cutting system used by Pezzolato consists of a closed drum with staggered sections equipped with knives, a counter-knife, and an interchangeable calibration grid. This system guarantees the production of quality wood chips, as the closed drum allows the cutting length of the wood chips to be kept fixed and constant. The wood, under the action of the knife, is transformed into calibrated chips, which are able to pass through the calibration grid immediately after cutting.
Worth mentioning is the system with the collapsible counter-knife: this system minimizes any damage caused by the accidental introduction of foreign bodies (not biomass) into the chipper.
The large-diameter fan (1250 mm), assembled directly on the main shaft, allows a good ejection of the wood chips. The hydraulic version of the ejection system, which is optional on this family of machines, allows the rotations to be adjusted dynamically: with drier material it is possible to work at low speeds, reducing either the consumption and the dust generated during processing; with wet material, such as that produced by green maintenance operations, the revolutions can be increased, keeping the evacuation of wood chips smooth and avoiding obstructions.




150 HP - 330 HP

Tractor power

500 mm

Maximum chipping diameter

1200x600 mm

Maximum inlet passage


Contact Us
Categories: , , Tag:

Description

Play Video

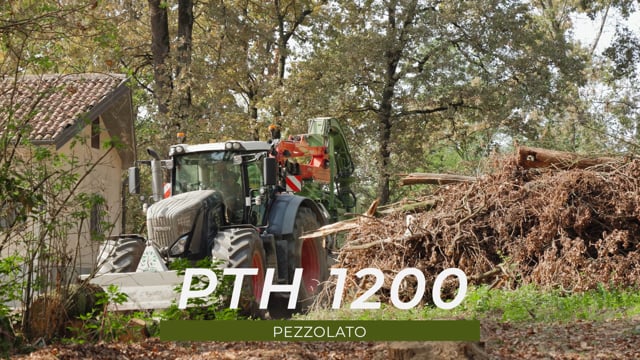

PTH 1200 G – Drum chipper driven by 300 Hp FENDT 930 tractor’s PTO

Play Video

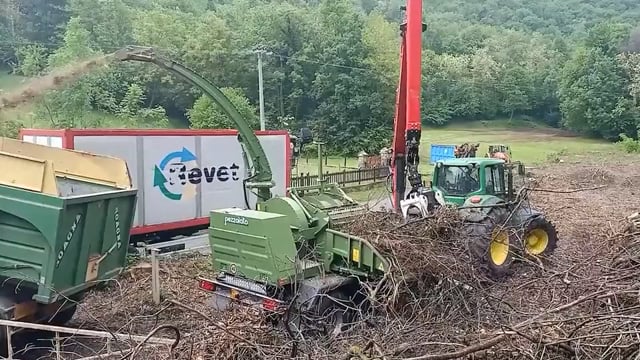

PTH 1200 G – Drum chipper driven by tractor’s PTO

Alternative models

Data Sheet

Minimum tractor power hp/kW 150/110
Maximum tractor power hp/kW 330/240
Maximum chipping diameter (softwood) mm 500
Maximum chipping diameter (hardwood) mm 350
Maximum material passage mm 1200x600
Knives n° 5
Production per hour m³/h up to 120
Drum diameter mm 660
Drum width mm 1200
Width of the closed-link steel feeding belt with hooks mm 1200
Length of the closed-link steel feeding belt with hooks mm 2200
Weight kg 11000

Data Sheet

Minimum tractor power hp/kW 140/105
Maximum tractor power hp/kW 280/209
Maximum chipping diameter (softwood) mm 500
Maximum chipping diameter (hardwood) mm 350
Maximum material passage mm 950x600
Knives n° 4
Production per hour m³/h up to 100
Drum diameter mm 660
Drum width mm 950
Width of the closed-link steel feeding belt with hooks mm 950
Length of the closed-link steel feeding belt with hooks mm 2200
Weight kg 8500
Go to the product

Data Sheet

Minimum tractor power hp 200
Maximum tractor power hp 330
Maximum chippable diameter (softwood) mm 600
Maximum chippable diameter (hardwood) mm 450
Maximum material passage mm 1000x900
Knives n° 4
Hourly production m³/h up to 150
Drum diameter mm 820
Drum width mm 1000
Feeding belt width in closed-link steel with hooks mm 1000
Feeding belt length in closed-link steel with hooks mm 2200
Indicative machine weight kg 11300
Go to the product

ConfigurationsConfigurations

High Tipper Container

With hydraulic tipping, for collecting wood chips in areas not accessible by vehicles

Tandem Trailer Setup

Pendulum axles, sprung axles (with steering or hydraulic steering axle if required). Available with forestry wheels (550/45 or 600/45) instead of the standard 4 wheels.

Tandem trailer with crane

Pendulum axles, leaf spring axles (with steering or hydraulic steering axle eventually). Different cranes and stabilizers available.

Crane with controls in the column

Different cranes and stabilizers available

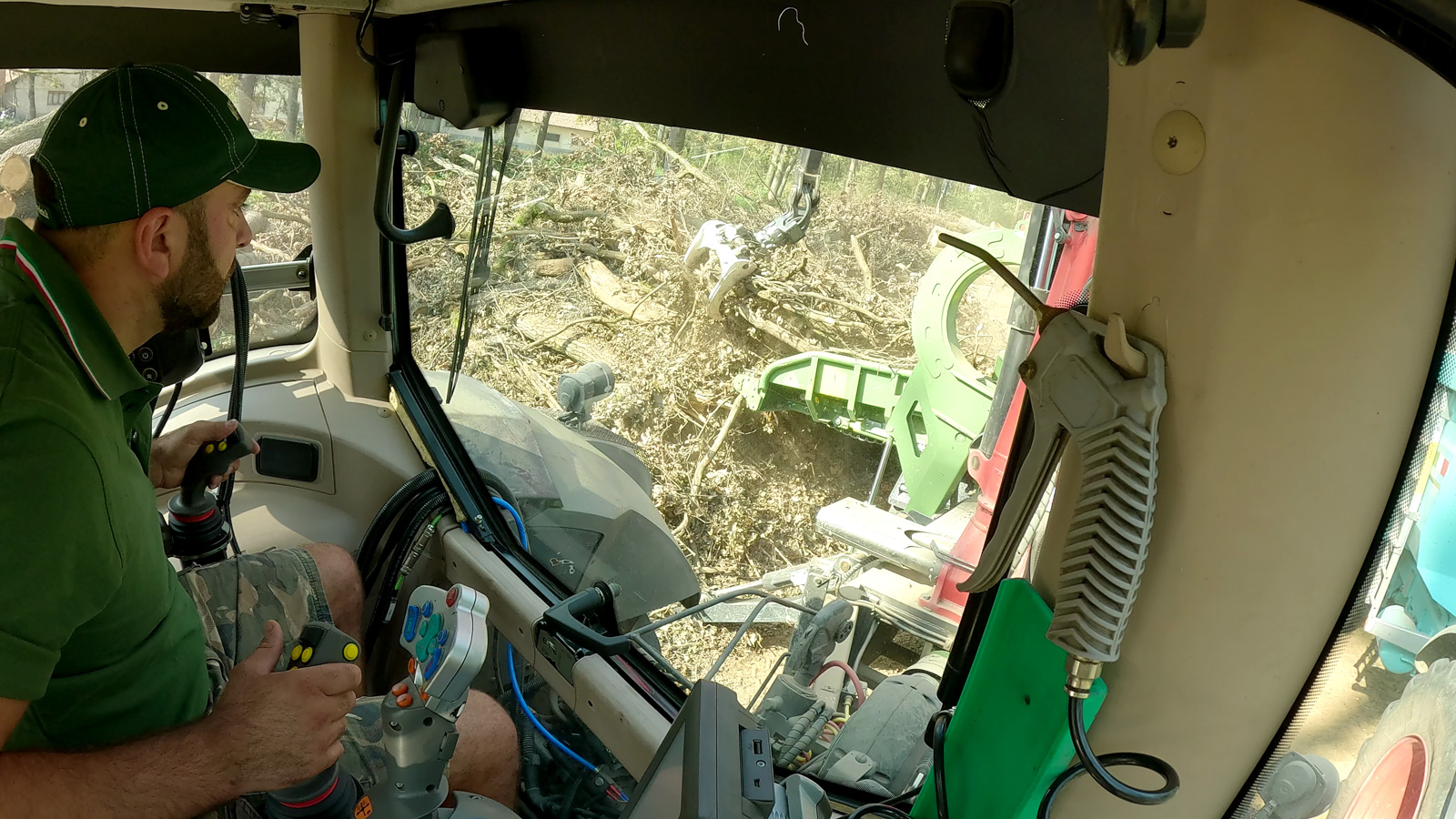

Crane with controls inside the tractor cab with reversible seat

Different cranes and stabilizers available

Accessories

Tool box with spare grid holder
Hydraulic Traction Assist

Facilitates machine movement in rough terrains.

Half-Moon Log Splitter

Also available with chainsaw.

Electric Winch

For replacing the screening grid.

Interchangeable Screening Grid

Available in different sizes and replaceable in a very short time

Smart interface and 5’ touch screen LCD display

It facilitates the movement recording, the chipping parameter management and allows to manage the hydraulic fan (if present)

Radio Controls

Different types of radio controls available for the management by remote of the main functions of the chipper

Collapsible counter-knife

Mounted on a sliding guide and secured with calibrated bolts. It prevents eventual damages caused by foreign bodies entering the machine

Tungsten carbide counter-knife elements

The independent counter-knife elements are available with a tungsten carbide coating

Tungsten carbide under-knives

Tungsten carbide under-knives
Cutting unit elements with a tungsten carbide coating

Idle facilitator roller

To facilitate the material feeding into the hopper

Hydraulic Fan

Mounted directly on the drum shaft, it works at low speed to reduce the dust effect and increase the quality of the wood chips.

Evolution drum

Drum in sections to distribute the effort of the machine, reducing vibration, noise and consumption.

Heavy Duty Drum

Sectional drum known for its reliability and durability; it ensures reduced vibration, noise and fuel consumption and guarantees a clean cut of the wood.

Towing hitch rear plate

For machine handling

Available drives for this model:

Power take-off

Autonomous engine

Electric version
